MA-6575 / 23 / SGS-M8

SUPPLIER :- Mahavir agencies

Parameter	Specification

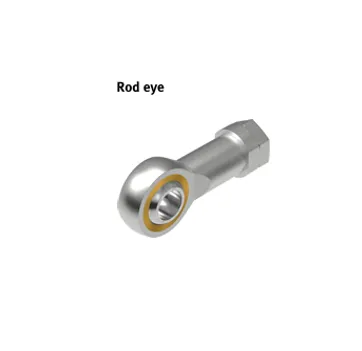

Product Name	Rod Eye
Model / Type	SGS-M8
Part Number	9255
Product Series	SGS
Thread Size	M8
Thread Type	Male piston rod thread
Accessory Type	Rod eye / rod end
Application	Spherical swivelling mounting of pneumatic cylinder piston rod
Standard	DIN ISO 8139 / ISO 12240-4
Corrosion Resistance Class	CRC 1 – Low corrosion stress
Ambient Temperature Range	−40 °C to +150 °C
Product Weight	Approx. 54 g
Housing Material	Galvanized steel
Outer Ring Material	Brass
Inner Raceway Material	Steel
Nut Material	Galvanized steel
Supplied Components	Rod eye with hexagonal nut (DIN 439)
Compliance	RoHS compliant

₹ 1,598.00 /NOS (Tax excluded)

Add to cart

Add to wishlist

Terms and Condition
Payment: 100% Advance
PRICE: Ex-works, Jamshedpur + GST 18 %.
PAYMENTS: 100 % against Performa invoice prior to dispatch.
FREIGHT: In your scope
DELIVERY: Within 90 days, However we will dispatch earlier.
INSURANCE: You shall do Transit insurance at your cost.
VALIDITY: 7 days
WARRANTY: 12 months against manufacturing defect .
