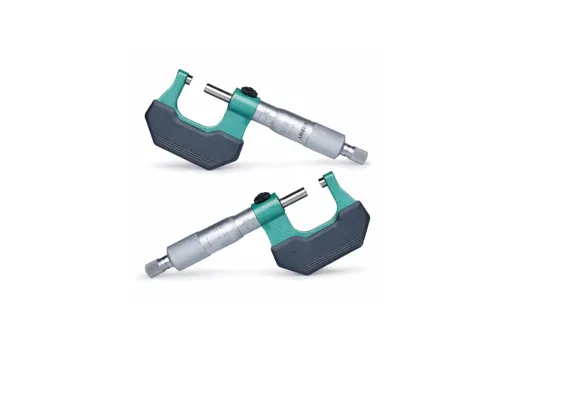

MA -6551 / 03 / Outside Micrometer-Standard 0 25mm, LC 0.01mm(MO25)

SUPPLIER :- Mahavir agencies

Sr. No.	Parameter	Specification
1	Measuring Range	0 to 25 mm
2	Least Count (Resolution)	0.01 mm
3	Accuracy	±0.004 mm (typical for standard mechanical micrometers)
4	Spindle Movement	0.5 mm pitch (One full rotation = 0.5 mm movement)
5	Anvil & Spindle	Material: Hardened and ground alloy steel Measuring faces: Lapped and polished Carbide tipped measuring faces for wear resistance
6	Frame	Material: High-grade cast steel / forged steel Finish: Enamel coated Heat insulated frame to minimize thermal expansion
7	Thimble & Sleeve	Satin chrome finish for glare-free reading Clearly engraved graduations
8	Ratchet Stop	Friction / Ratchet type for uniform measuring pressure
9	Locking System	Spindle lock lever provided
10	Standard Accessories	Setting standard (if applicable) Spanner wrench Fitted plastic / wooden storage case Calibration certificate (if required)
11	Application	Used for precise external measurement of shafts, wires, tubes, and small precision components

₹ 2,498.00 ₹ 2,498.00 /NOS  (Tax excluded)


Add to cart

Add to wishlist

Terms and Condition
Payment: 100% Advance
PRICE: Ex-works, Jamshedpur + GST 18 %.
PAYMENTS: 100 % against Performa invoice prior to dispatch.
FREIGHT: In your scope
DELIVERY: Within 90 days, However we will dispatch earlier.
INSURANCE: You shall do Transit insurance at your cost.
VALIDITY: 7 days
WARRANTY: 12 months against manufacturing defect .
