MA-6575 / 21/ SGS-M10X1,25

SUPPLIER :- Mahavir agencies

Parameter	Specification

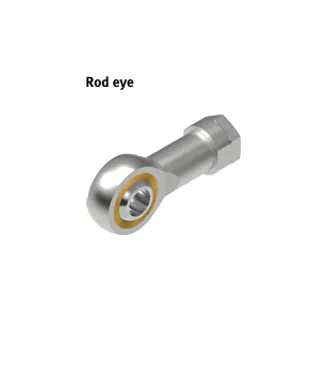

Product Name	Rod Eye
Model / Type	SGS-M10X1,25
Part Number	9261
Product Series	SGS
Size / Thread	M10 × 1.25
Thread Type	Male piston rod thread
Accessory Type	Rod end / rod eye for cylinder
Application	Spherical swivelling mounting of pneumatic cylinder piston rod
Max. Load Capacity	0.9 kN
Corrosion Resistance Class	CRC 1 – Low corrosion stress
Ambient Temperature Range	−40 °C to +150 °C
Product Weight	Approx. 88 g
Housing Material	Galvanized steel
Outer Ring Material	Brass
Inner Raceway Material	Steel
Nut Material	Galvanized steel
Standards / Compliance	VDMA24364-B2-L (LABS/PWIS), RoHS compliant
Supplied Components	Rod eye with hexagonal nut (DIN 439)

₹ 1,298.00 /NOS (Tax excluded)

Add to cart

Add to wishlist

Terms and Condition
Payment: 100% Advance
PRICE: Ex-works, Jamshedpur + GST 18 %.
PAYMENTS: 100 % against Performa invoice prior to dispatch.
FREIGHT: In your scope
DELIVERY: Within 90 days, However we will dispatch earlier.
INSURANCE: You shall do Transit insurance at your cost.
VALIDITY: 7 days
WARRANTY: 12 months against manufacturing defect .
