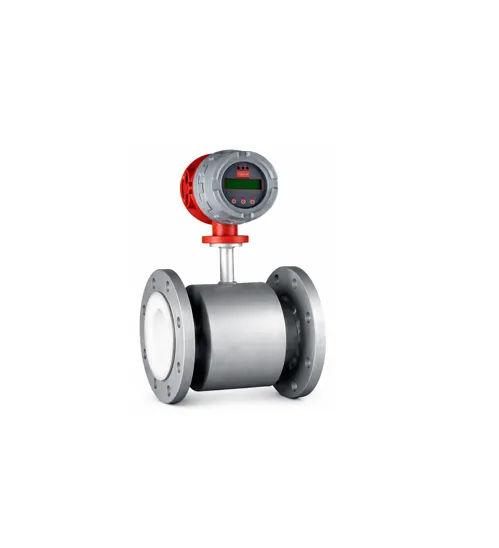

MA-6574/ 01 / Electromagnetic Flowmeter 40NB

SUPPLIER :- Mahavir agencies

TECHNICAL SPECIFICATION

(1) Model No. : FMIPL-EMFM-TS1-F-C-F1-CH1-EL2-IF-ER3-PL-WP-I-W2-AC1-H-CR-NA-CG1-CE2-CP1-40NB

(2) Line Size : 40 NB (1.5 Inch)

Operating Conditions

(3) Service : Water

(4) Operating Pressure : Atmospheric

(5) Operating Temperature : Ambient

(6) Density : 1

(7) Viscosity : 0.3 to 10 m/s

(8) Conductivity : Minimum 5 µS/cm

(9) Operating Flow : To be specified

(10) Flow Range (Min / Max) : 1.4 to 22 m³/hr

(11) Existing Pipe MOC : To be specified

Construction Details

(12) Flowtube MOC : SS 304

(13) Process Connection Type : Flanged ANSI

(14) Process Connection MOC : Carbon Steel

(15) Process Connection Standard : ASA 150#

(16) Coil Housing MOC : As per Model Configuration
