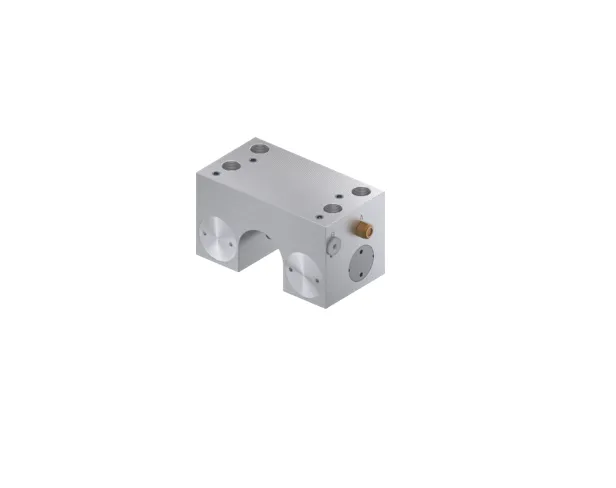

MA-6567/ 01 / CLAMPING ELEMENT ,MKR2500A

SUPPLIER :- Mahavir agencies

Sl. No.	Parameter	Specification
1	Item Description	Clamping Element
2	Model / Type	MKR2500A
3	Series	MKR Series
4	Operation	Pneumatic Clamping Element
5	Shaft Diameter	25 mm
6	Holding Force	1200 N
7	Holding Torque	15 Nm
8	Operating Pressure	2 – 6.5 bar
9	Nominal Operating Pressure	6 bar
10	Operating Temperature	–10 °C to +70 °C
11	Positioning Accuracy	±0.02 mm
12	Opening Time	0.025 s
13	Closing Time	0.01 s
14	Air Volume per Cycle	10 cm³
15	Weight	Approx. 0.72 kg
16	Installation Direction	From Above
17	Condition	Normally Open (open without pressure)
18	Certifications	REACH / RoHS compliant
19	Application	Used for clamping round shafts or circular guide rails in automation and linear motion systems

₹ 96,998.00 ₹ 96,998.00 /NOS  (Tax excluded)


Add to cart Buy now

Add to wishlist

Terms and Condition
Payment: 100% Advance
PRICE: Ex-works, Jamshedpur + GST 18 %.
PAYMENTS: 100 % against Performa invoice prior to dispatch.
FREIGHT: In your scope
DELIVERY: Within 90 days, However we will dispatch earlier.
INSURANCE: You shall do Transit insurance at your cost.
VALIDITY: 7 days
WARRANTY: 12 months against manufacturing defect .
