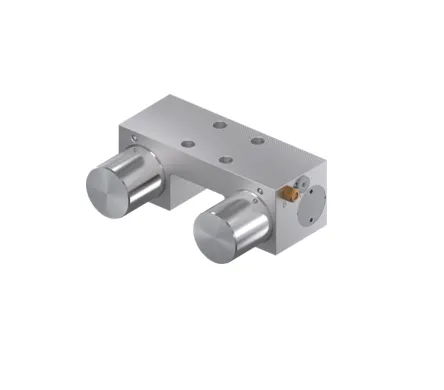

MA-6567/ 03 / CLAMPING ELEMENT FOR LM GUIDE ,MKS4505AK

SUPPLIER :- Mahavir agencies

Sl. No.	Parameter	Specification
1	Operation	Pneumatic
2	Function	Clamping
3	Condition	NC (Normally Closed) – Closed without pressure
4	Holding Force	1450 N
5	Holding Force (PLUS Connection)	3300 N
6	PLUS Connection	Possible
7	Operating Pressure	5.5 – 6.5 bar
8	Nominal Operating Pressure	6 bar
9	B10d Value	5,000,000 cycles
10	Positioning Accuracy	±0.02 mm
11	Opening Time	0.03 s
12	Closing Time	0.035 s
13	Operating Temperature	–10 °C to +70 °C
14	Clean Room Compatibility	As per DIN EN ISO 14644-1 Class 6
15	Air Volume per Cycle	17 cm³
16	Maximum Clamping Length	82 mm
17	Installation Direction	From the Front
18	Certifications	CE / UKCA / LABS / REACH / RoHS
19	Weight	1.8 kg

₹ 1,58,398.00 ₹ 1,58,398.00 /NOS  (Tax excluded)


Add to cart Buy now

Add to wishlist

Terms and Condition
Payment: 100% Advance
PRICE: Ex-works, Jamshedpur + GST 18 %.
PAYMENTS: 100 % against Performa invoice prior to dispatch.
FREIGHT: In your scope
DELIVERY: Within 90 days, However we will dispatch earlier.
INSURANCE: You shall do Transit insurance at your cost.
VALIDITY: 7 days
WARRANTY: 12 months against manufacturing defect .
