SUPPLIER : MAHAVIR AGENCIES

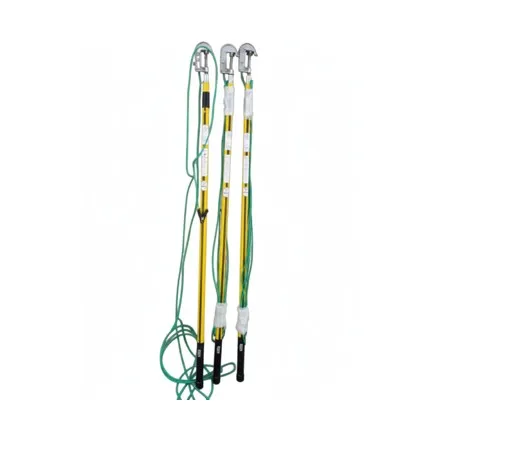

Operating Fibre Glass Earthing Discharge Rod – Precise Technical Specifications
Purpose: Discharging residual/induced electrical charge prior to maintenance
System Voltage Rating: 11 kV (maximum)
Construction
Rod Type: Telescopic operating and discharge rod
Insulating Material: Electrical-grade fibre glass
Number of Sections: 3
Extended Length: 15 feet
Locking System: Spring-loaded positive locking
Discharge & Earthing Components
Discharge Head: Aluminium conductor clamp
Conductor Size Capacity: Up to 40 mm diameter
Earthing Clamp: Aluminium clamp with T-handle, manual tightening
Earthing Conductor: Flexible single-core transparent copper
Conductor Cross-Section: 10 sq. mm
Conductor Length: 7 meters
Handling & Safety
Hand Grip: PVC insulated grip
Application: Overhead lines and substation equipment
Safety Function: Provides controlled discharge path to earth
Accessories
Telescopic discharge rod assembly
Earthing cable with clamps
Canvas carry bag for storage and transport
