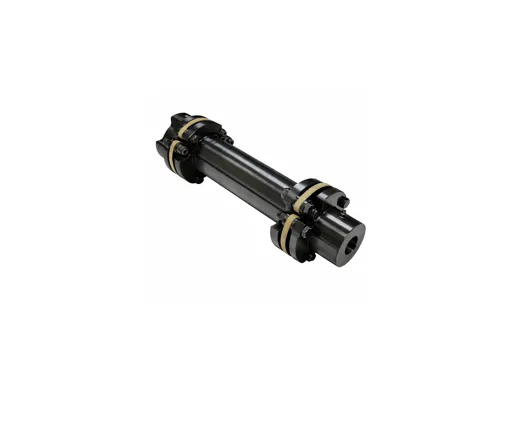

MA-6559/ 02/ FLOATING SHAFT 65Ø X 1601 LG

Name: MA-6559/ 02/ FLOATING SHAFT 65Ø X 1601 LG
Price: 122848.0 INR

SUPPLIER :- Mahavir agencies

TECHNICAL SPECIFICATION

Item Name: Floating Shaft

Part Number: FS651601

Size: 65Ø × 1601 LG

Application: Mechanical / Crane Long Travel Drive Transmission

1. General Details

Parameter	Specification
Component Name	Floating Shaft
Part Number	FS651601
Shaft Diameter	65 mm
Shaft Length	1601 mm
Type	Floating Transmission Shaft

2. Material & Construction

Parameter	Specification
Material	EN8 / EN19 Alloy Steel
Manufacturing Process	Forged and Precision Machined
Surface Finish	Smooth Machined Finish with Anti-Corrosion Coating
Heat Treatment	Normalized / Hardened (if required)

3. Mechanical Characteristics

Parameter	Specification
Function	Transmission of torque between two drive units
Shaft Type	Solid Cylindrical Floating Shaft
Balancing	Dynamically balanced for smooth operation
Alignment Capability	Compensates angular and axial misalignment

4. Coupling Arrangement

Parameter	Specification
Coupling Type	Flexible / Geared Coupling
End Connection	Coupling hubs at both ends
Mounting	Keyed shaft connection
Lubrication	Grease lubricated couplings

5. Dimensional Characteristics

Parameter	Specification
Shaft Diameter	65 mm
Overall Length	1601 mm
Bore / Keyway	As per coupling hub design
Weight	Approx. 35 – 60 kg

6. Operational Features

Allows axial and angular misalignment between connected shafts
Suitable for heavy duty power transmission
Ensures smooth torque transfer
Reduces load on gearbox and bearings

₹ 1,22,848.00 /NOS (Tax excluded)

Add to cart

Add to wishlist

Terms and Condition
Payment: 100% Advance
PRICE: Ex-works, Jamshedpur + GST 18 %.
PAYMENTS: 100 % against Performa invoice prior to dispatch.
FREIGHT: In your scope
DELIVERY: Within 90 days, However we will dispatch earlier.
INSURANCE: You shall do Transit insurance at your cost.
VALIDITY: 7 days
WARRANTY: 12 months against manufacturing defect .
