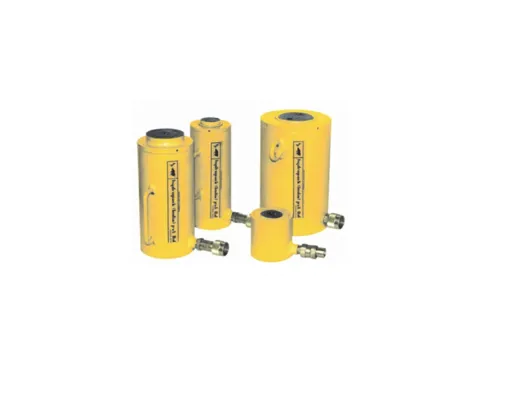

MA- 6558 / 01 / Hydraulic Single Acting Spring Return Plain Ram Jack

SUPPLIER :- Mahavir agencies

TECHNICAL SPECIFICATION

Item Description

Hydraulic Jack – Single Acting, Spring Return, Plain Ram

• Capacity: 30 Ton

• Type: Single Acting, Spring Return, Plain Ram

• Stroke Length: 150 mm

• Closed Height: 270 mm

• Body Diameter: 100 mm

• Operation: Operated with separate Hydraulic Hand Pump

• Pump Model: HP301Z1

• Hose Pipe: 2 meters long hydraulic hose

• Coupling: Quick Change Coupler on both ends

• Pressure Gauge: 63 mm Dial Diameter

Complete Set Includes:

1. Hydraulic Single Acting Spring Return Plain Ram Jack – 30 Ton

2. Hydraulic Hand Pump Model HP301Z1

3. Hydraulic Hose Pipe – 2 mtrs with Quick Change Couplers

4. Pressure Gauge – 63 mm Dial
