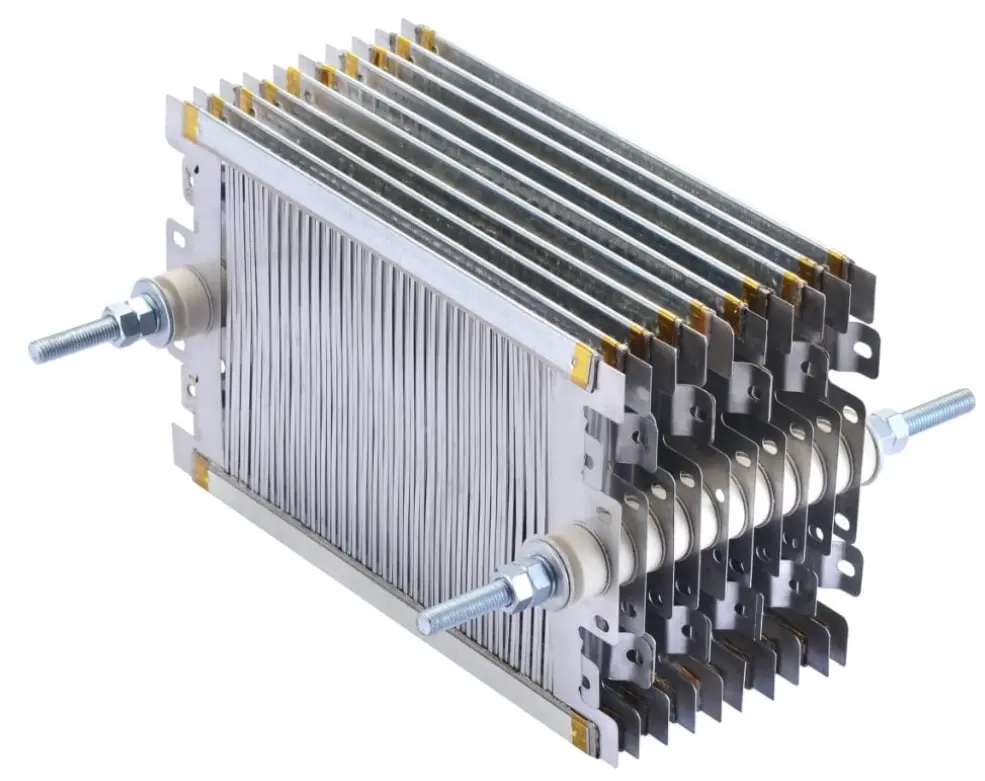

MA-5684 GRID RESISTANCE,PUNCHED STEEL ,380 V,6.52 OHM

Name: MA-5684 GRID RESISTANCE,PUNCHED STEEL ,380 V,6.52 OHM
Price: 598396.0 INR

Punched Grids Stainless Steel SS-304 type Resistance Box for 99KW, 3 Phase motor having RV= 380V, RA= 158A, 05 steps. The step resistance values shall be as under: Res. Value 5.69 0.37 0.27 0.13 0.069 (in ohms) The set of 3 phase resistance box shall comprise of 02 box type KRB-1626 Box Dimension (L-825 x W-640 x H-1510→) MM Stool Dimension (L-840 x W-640 x H-350→) MM

CRANE

₹ 5,98,396.00 /SET (Tax excluded)

Add to cart

Add to wishlist

Terms and Condition
Payment: 100% Advance
PRICE: Ex-works, Jamshedpur + GST 18 %.
PAYMENTS: 100 % against Performa invoice prior to dispatch.
FREIGHT: In your scope
DELIVERY: Within 90 days, However we will dispatch earlier.
INSURANCE: You shall do Transit insurance at your cost.
VALIDITY: 7 days
WARRANTY: 12 months against manufacturing defect .
