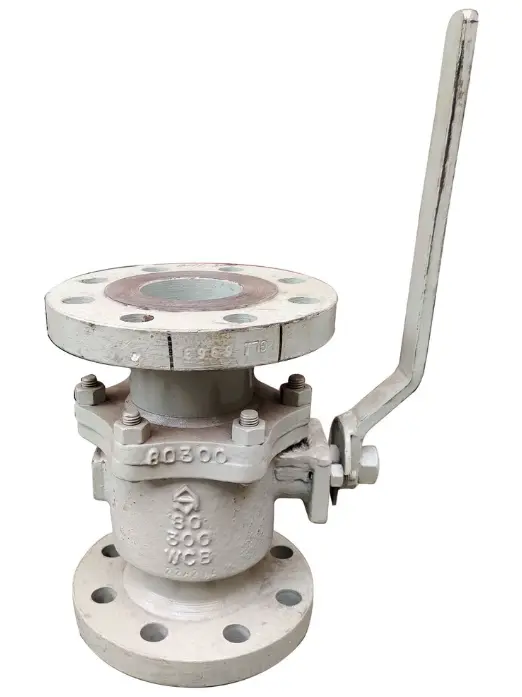

MA-5650 BALL VLV;DN 80 MM,10 KGCM2

Detailed Desc:Additional text for item: BARE STEM VALVE WITH BRACKET. SHAFT SQARE 22x22mm METAL TO METAL SEAL & SEAT Need for Services: PCI DE pressuring valve. MPN Text: Part no : B/V 80MM Manufacturer : AIRA EURO AUTOMATION PRIVATE LIMITE Purchase order text: Short text: BALL VLV;DN 80 MM,10 KG/CM2,100 °C,PULVE No Details are available Long Text: VALVE SIZE:DN 80 MM PN RATING:10 KG/CM2 MAXIMUM WORKING TEMPERATURE:100 °C LEAKAGE CLASS:VI DIRECTION OF FLOW:UNIDIRECTIONAL OPERATING MECHANISM:PNEUMATIC ACTUATOR:NOT APPLICABLE ACCESSORIES:NOT APPLICABLE VALVE POSITION:HORIZONTAL/VERTICAL NO OF PORTS:NA PORT TYPE:NA BODY STYLE:ASTM A 216 GR. WCB END CONNECTION:FLANGED FACE TO FACE DISTANCE STANDARD:160 MM FLANGE STANDARD:ANSI B 16.5 # 150 MEDIA:PULVERIZED COAL & NITROGEN DUTY CYCLE:ONCE IN 15 MUNUTS BODY MOC:A216-WCB SEAT RING MOC:AISI 316 BALL MOC:SS 316 STEM MOC:SS304 STEM SEAL:CARBON FILLED PTFE TYPE OF BALL:V-NOTCH GLAND:SS304 SOCKET WELD STANDARD:FLANGED No Details are available Additional UMC Text: BARE STEM VALVE WITH BRACKET. SHAFT SQARE 22x22mm METAL TO METAL SEAL & SEAT
