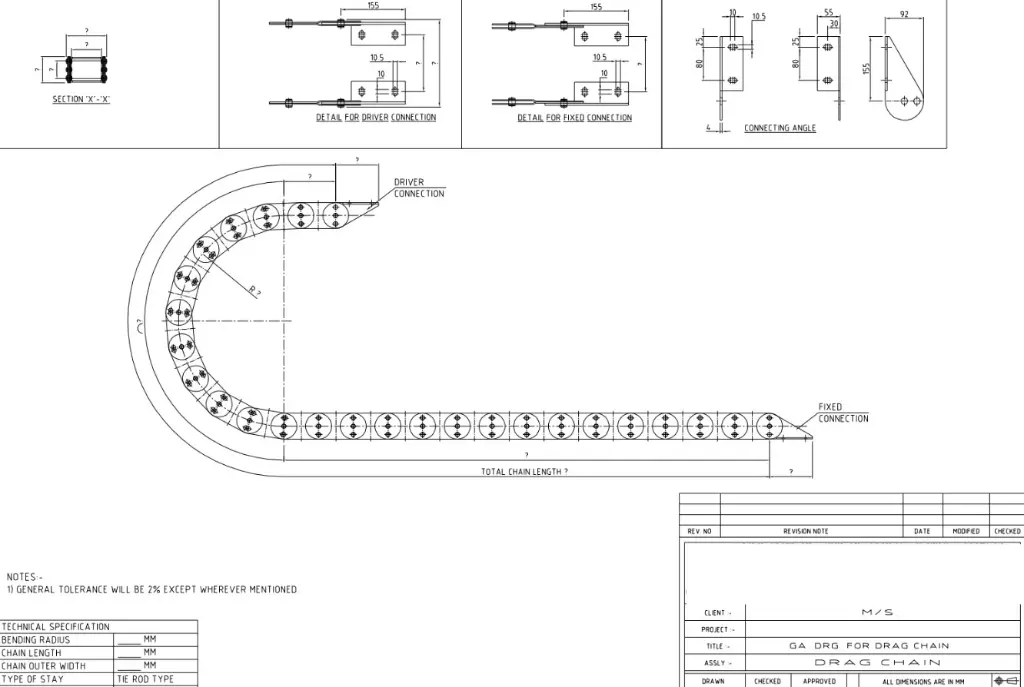

MA-24 DRAG CHAIN

Steel Cable Drag Chain complete with 4 Nos. end

connections as per below :-

Type : 0950

Length of Chain (LK): 6080 mm

Bending Radius (KR): 300 mm

Width of the Chain (BK): 215 mm

Type of Stay : Frame Stay

Our scope includes only Cable Drag Chain excluding Cables &

Support System.

OPTION B

Steel Cable Drag Chain Type 0950 with 4 nos. end connections

`ELEKTROMAG' make Steel Cable Drag Chain complete with 4 Nos. end

connections as per below :-

Type : 0950

Length of Chain (LK): 4940 mm

Bending Radius (KR): 290 mm

Width of the Chain (BK): 215 mm

Type of Stay : Frame Stay

Note: Our scope includes only Cable Drag Chain excluding Cables &

Support System.

CRANE

₹ 78,000.00 ₹ 78,000.00 /NOS  (Tax excluded)


Add to cart

Add to wishlist

Terms and Condition
Payment: 100% Advance
PRICE: Ex-works, Jamshedpur + GST 18 %.
PAYMENTS: 100 % against Performa invoice prior to dispatch.
FREIGHT: In your scope
DELIVERY: Within 90 days, However we will dispatch earlier.
INSURANCE: You shall do Transit insurance at your cost.
VALIDITY: 7 days
WARRANTY: 12 months against manufacturing defect .
