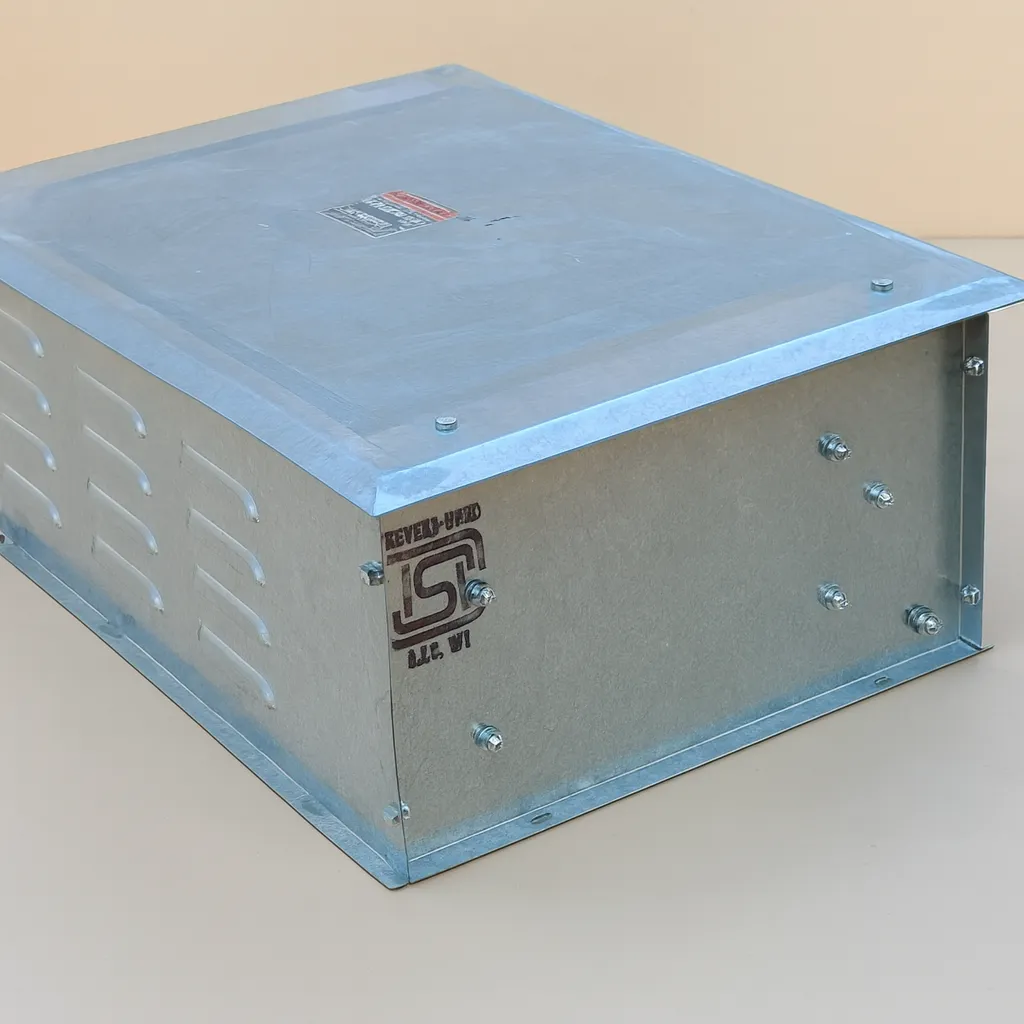

MA-2307 RESISTANCE BOX FOR 20 KW MAGNET PANEL

MA-2307 RESISTANCE BOX FOR 20 KW MAGNET PANEL

SUPPLIER :- MAHAVIR AGENCIES

Here are typical specifications for a Resistance Box / Braking Resistor Box suitable for a 20 kW magnet panel (used for dynamic braking, energy dissipation, current limiting or load simulation in high-power industrial systems):

1. Electrical Specifications

ParameterTypical Value / Range
Rated Power Dissipation20 kW (continuous at 25 °C free-air rating)
Resistance Value1 Ω – 1 000 Ω (common range; wider ranges available on request)
Resistance Tolerancetypically ±5 % to ±10 % (depends on manufacturer)
Temperature Coefficient≤ 400 ppm/°C (stable with temperature change)
Operating Voltage Rangetypically < 800 V DC/AC for standard units (some products designed for higher voltages)
Insulation Resistance> 100 MΩ @ 500 V (standard humidity)
Dielectric / Withstand Voltage> 3 kV AC, 50 Hz, 1 min (depends on design)
₹ 58,800.00 ₹ 58,800.00 /NOS  (Tax excluded)


Add to cart
Add to wishlist
Terms and Condition
Payment: 100% Advance
PRICE: Ex-works, Jamshedpur + GST 18 %.
PAYMENTS: 100 % against Performa invoice prior to dispatch.
FREIGHT: In your scope
DELIVERY: Within 90 days, However we will dispatch earlier.
INSURANCE: You shall do Transit insurance at your cost.
VALIDITY: 7 days
WARRANTY: 12 months against manufacturing defect .
