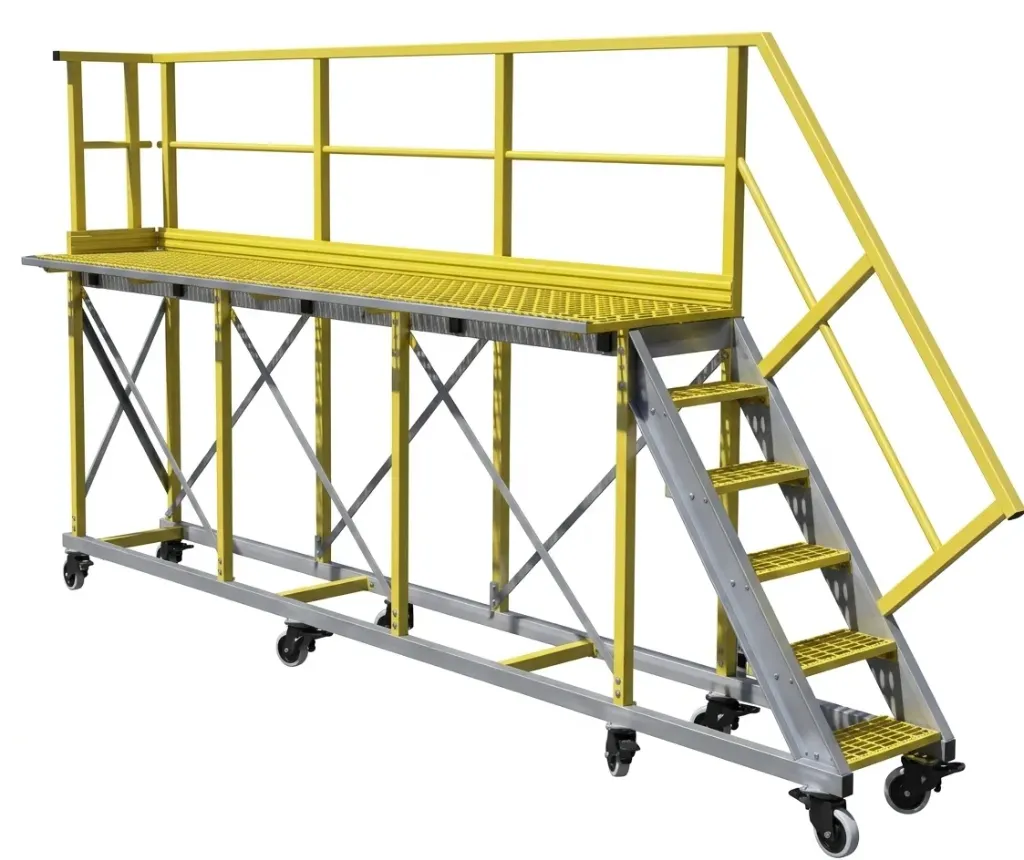

BO-06 Mobile Work Platform 4METER HEIGHT 5 FEET

Supplier :Mahavir Agencies

Purpose & Overview

This customized Mobile Platform Trolley Ladder was specifically designed, developed, and manufactured for safe loading and strapping of CRM/HSM coils on rail wagons and trailers.

It addresses a critical workplace hazard: previously, due to open sides on trailers and wagons, contractors' laborers and supervisors were at high risk of falling while handling coils. This platform eliminates those safety gaps to ensure worker protection.

Technical Specifications

• Weight & Strength: Light weight, high strength (as good as steel).

• Electrical Safety: Shock-proof with low thermal conductivity.

• Mobility: Easily movable via bottom-fitted wheels with built-in brakes.

• Durability: Corrosion-resistant design.

• Compliance: Meets both Indian and international engineering standards.

Approvals & Standards Compliance

1. EN-131: Ladder manufacturing and testing standards.

2. ANSI-A-14.5 -1992: AC Dielectric strength compliance.

3. ASTM D 257-2007: Insulating resistance testing.

4. ASTM D570-81: Water absorption standards.

5. IS 15-2701: Dry power frequency voltage withstand test.

6. IS 15-2701: Wet power frequency voltage withstand test.

7. IS: 67646-1994: Flammability test standards.

8. IS: 10661-1994: Glass content test compliance.

9. ASTM D 495-99: ARC Resistance testing.

10. ASTM E 84: Flame spread rating (less than 25).
